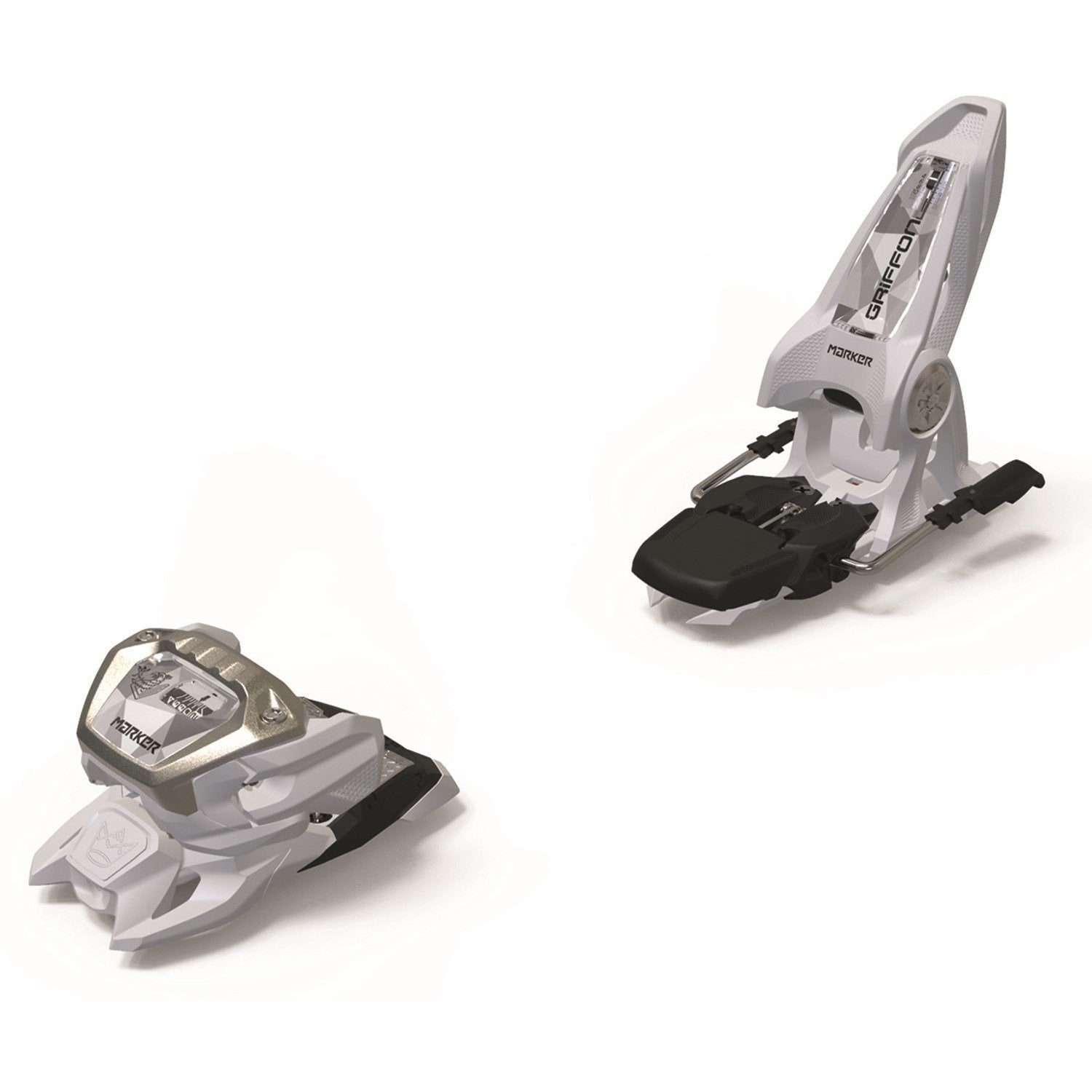

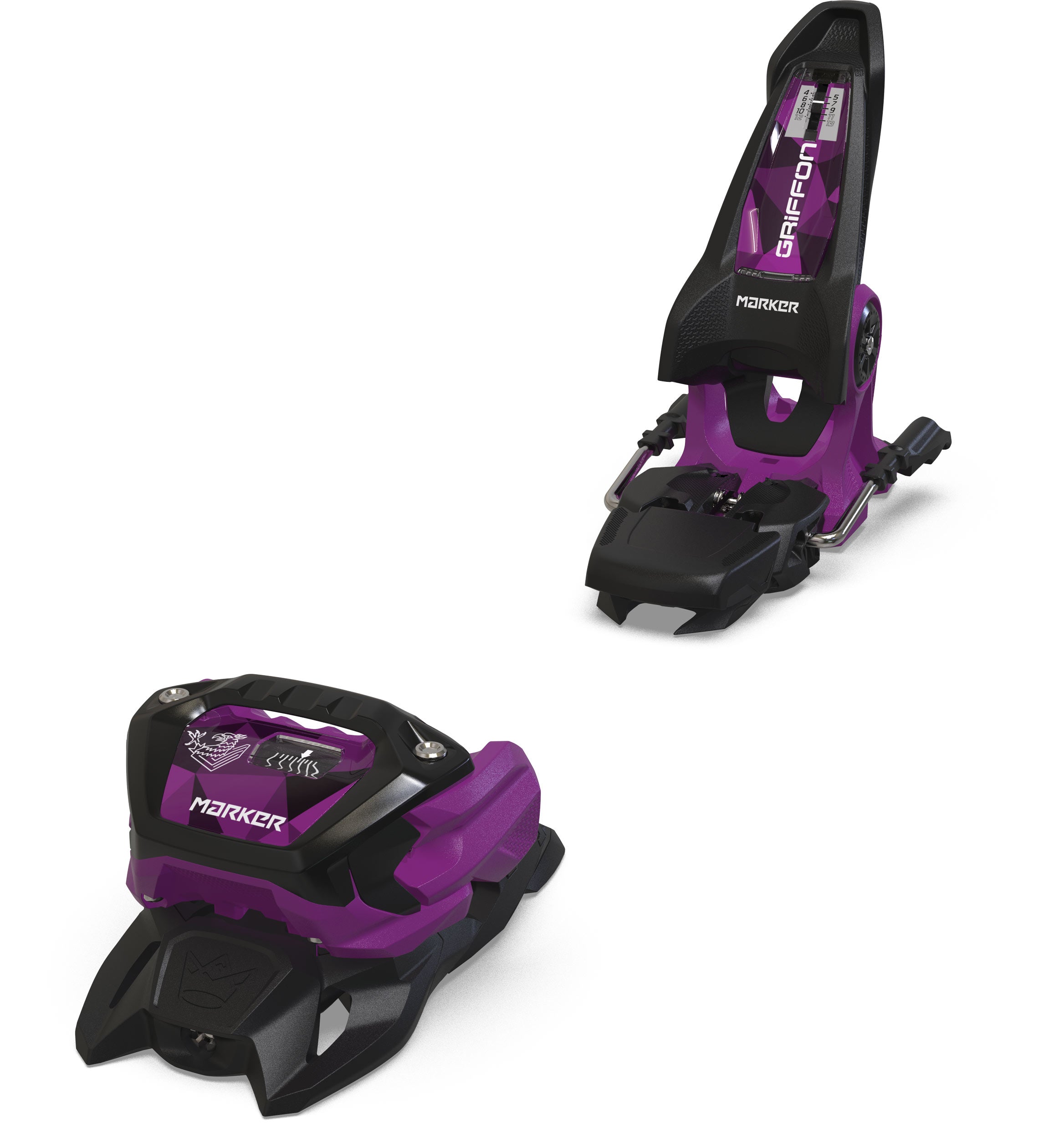

Marker Griffon 13 ID Ski Binding
Different levels of skiing require different responses & sensitivity to impact. (DIN stands for Deutsche Industrie Norm& ASTM Stands for American Society of Testing Standards and are just ways to refer the scale binding release is measured on.)
The lower the release setting, the less of an impact is necessary to trigger the binding to open.
A low release setting anywhere from 3 - 10 is best for beginners & intermediate skiers.
A high release setting around 14 - 16 will withstand rougher terrain for advanced athletes.
| DANGER! Severe injury/Permanent disability if not done by professional | |||||||
| Skier Weight pounds |
Skier Height inches |
Boot sole length in mm | |||||
| <250 | 251-270 | 271-290 | 291-310 | 311-330 | >331 | ||
| DIN setting | |||||||
| 22-29 | - | .75 | .75 | - | - | - | - |
| 30-38 | - | 1 | 1 | .75 | - | - | - |
| 39-47 | - | 1.25 | 1.25 | 1 | - | - | - |
| 48-56 | - | 1.75 | 1.5 | 1.5 | - | - | - |
| 57-66 | - | 2 | 2 | 1.75 | - | - | - |
| 67-78 | - | 2.5 | 2.5 | 2.25 | 2 | 1.75 | 1.75 |
| 79-91 | - | - | 3 | 2.5 | 2.5 | 2.25 | 2 |
| 92-107 | 4'10" | - | 3.5 | 3 | 3 | 2.5 | 2.5 |
| 108-125 | 4'11"-5'1" | - | 4.25 | 4 | 3.5 | 3.25 | 3.25 |
| 126-147 | 5'2"-5'5" | - | 5 | 4.75 | 4.5 | 4 | 4 |
| 148-174 | 5'6"-5'10" | - | 6 | 5.5 | 5.25 | 5 | 4.75 |
| 175-209 | 5'11"-6'4" | - | 7 | 6.75 | 6.25 | 6 | 5.75 |
| 210+ | 6'5"+ | - | 8.5 | 8 | 7.5 | 7 | 6.75 |
| racing | only | - | 10 | 9.5 | 9.0 | 8.5 | 8.25 |
| racing+ | only | - | 12 | 11.25 | 10.75 | 10.25 | 10 |
| DANGER! Severe injury/Permanent disability if not done by professional | |||||||
All orders of $50 or more.
Fast, easy returns within 30 days.
Marker
The completely updated pro freeride binding for lighter riders. Including new heel and toe for improved performance. The lighter version of the Jester, providing the same features for younger and lighter riders, is one of the most versatile freeride bindings on the market today, made for advanced to expert skiers. The new Griffon 13 ID is equipped with all new Triple Pivot Elite toe and Inter Pivot 3 freeride heel. Both are lighter and stiffer than previous parts and deliver improved edge grip and control. Also new is the Anti Ice Rail to scrap off snow from the boot sole. Its Sole.ID technology allows to adjust the binding to accommodate either touring or alpine boot sole norms. On top the Griffon 13 ID features no-pull-out screws and a centralized swing weight, ideal for spins & twists. Griffon 13 ID is available with 90, 100, 110 and 120 mm brakes in 4 color combinations.
Fit + Features
TRIPLE PIVOT ELITE TOE: The toe construction with DIN/ISO up to Z 18 allows for impressive retention when freeriding. The spring in the toe is inserted horizontally and with a sole plate inclined by 5° it provides the higher energy absorption so as to reduce the risk of early release. The large supporting surface optimizes the power transmission and allows for great stresses and strains. In relation to their weight, toes with this technology therefore achieve a never-seen-before performance.
ANTI ICE RAIL: Use the metal rail to scratch off ice and snow below your boot sole.
INTER PIVOT 3 FREERIDE HEEL:The third and newest generation completely redone: improved power transimission, energy absorption and vertical heel elasticity combined with an improved step in comfort.
Construction + Materials
AFD GLIDING PLATE: MARKER bindings are equipped with a moveable AFD (anti friction device) supporting a precise release almost entirely unhindered by dirt, snow and ice! Individual adjustment of the AFD to the area of application enhance optimized functionality - for racing, for children’s bindings or on ski tours.
Additional Features
Height-adjustable gliding plate to be compatible with all boot soles on the market
Compatible with: Alpine (ISO 5355 A), Touring (ISO 9523) and GripWalk (ISO 23223 A) soles
Easy to adjust: Pozi screw at the front to adjust height of gliding plate
Ski
Marker
Mens, Womens, and Unisex Adult
Freestyle
3 Year
Intermediate–Advanced
